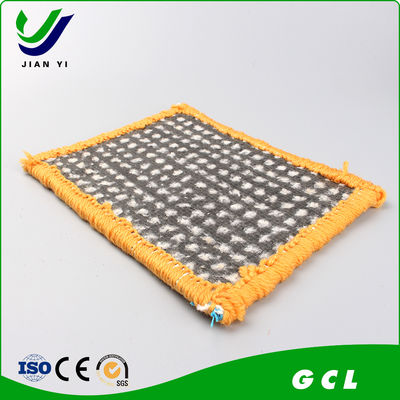

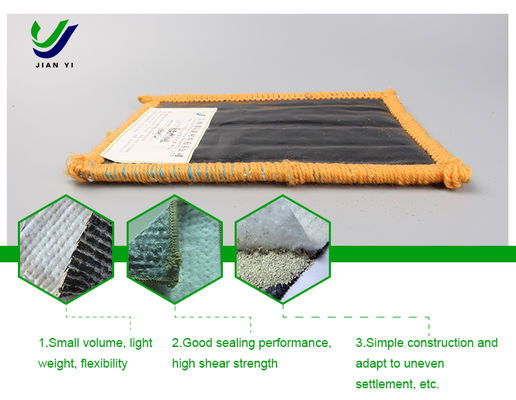

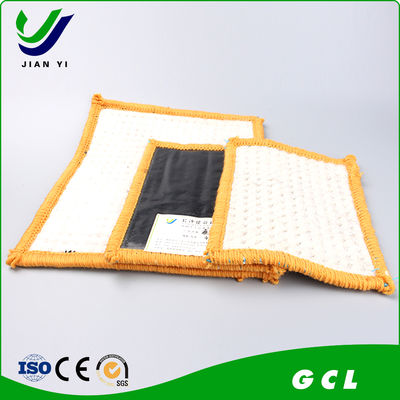

Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications

180m2
MOQ
0.83USD~2.75USD per sqm
harga
Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Lebar: 4-6m
Indeks Pembengkakan: ≥24ml/2g
Jenis: Liner Tanah Liat Geosintetik
Satuan berat: ≥4000g/㎡
Tanah Liat Biru: ≥30 gram/100 gram
Perpanjangan Pada Beban Maks: ≥10%
Tekanan Hidrolik Pesistance: ≤5,0X10ˉ11m/detik
Daya Tahan Bentonit: ≥20ml/2g
Menyoroti:

Reinforced Composite Bentonite Waterproof Blanket

,

High Tensile Strength Geosynthetic Clay Liner

,

Long Service Life Bentonite GCL
Informasi dasar
Tempat asal: Cina
Nama merek: JianYi
Sertifikasi: ISO 9001 CE
Nomor model: 4000-6000g/㎡
Syarat-syarat pembayaran & pengiriman
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: T/T,L/C
Menyediakan kemampuan: 3000T/bulan
Deskripsi Produk
Bentonite Waterproof Blanket - Reinforced Composite Impermeable Material
Product Introduction
This reinforced bentonite waterproof blanket represents an advanced upgrade to traditional BWB technology. By integrating a high-strength geogrid between the bentonite layer and geotextile, the product achieves superior tensile strength and tear resistance while maintaining the exceptional water-swelling and impermeable properties of natural bentonite. Engineered for applications demanding enhanced structural integrity and waterproof reliability.
Product Features
  • High Tensile Strength: Geogrid reinforcement significantly enhances tensile strength and tear resistance, suitable for large-area installations and deformation-prone environments
  • Reliable Impermeability: Evenly distributed bentonite particles form a continuous impermeable layer that effectively blocks water seepage
  • Easy Installation: Lightweight and flexible design allows for simple cutting and laying, reducing construction complexity and improving efficiency
  • Long Service Life: Composite structure resists aging and damage, providing durable waterproof performance exceeding 50 years under normal conditions
Application Fields
Ideal for large-scale water conservancy projects including dams and sluices, highway and railway subgrade anti-seepage systems, landfill leachate collection and treatment facilities, industrial wastewater storage tanks, and coastal reclamation projects. Particularly suited for applications with extensive structural spans and demanding requirements for both anti-seepage performance and structural stability.
Product Installation Guidelines
  • Base Surface Preparation: Remove debris and sharp objects, level and compact the surface with flatness tolerance within ±5cm
  • Laying Sequence: Install from lower to upper sections along slopes; horizontal installation proceeds from upstream to downstream
  • Overlap Specifications: Maintain 20cm longitudinal overlap and 15cm transverse overlap widths
  • Connection Treatment: Apply bentonite paste to overlap areas for enhanced impermeability; secure with fixing nails at density of 2-3 nails per square meter
  • Inspection & Backfilling: Conduct comprehensive inspection for wrinkles, damage, and insufficient overlap; backfill with non-corrosive soil in compacted layers
Performance Advantage: The reinforced composite structure combines the proven waterproofing capabilities of bentonite with enhanced mechanical strength, delivering reliable long-term performance in demanding civil engineering applications.
